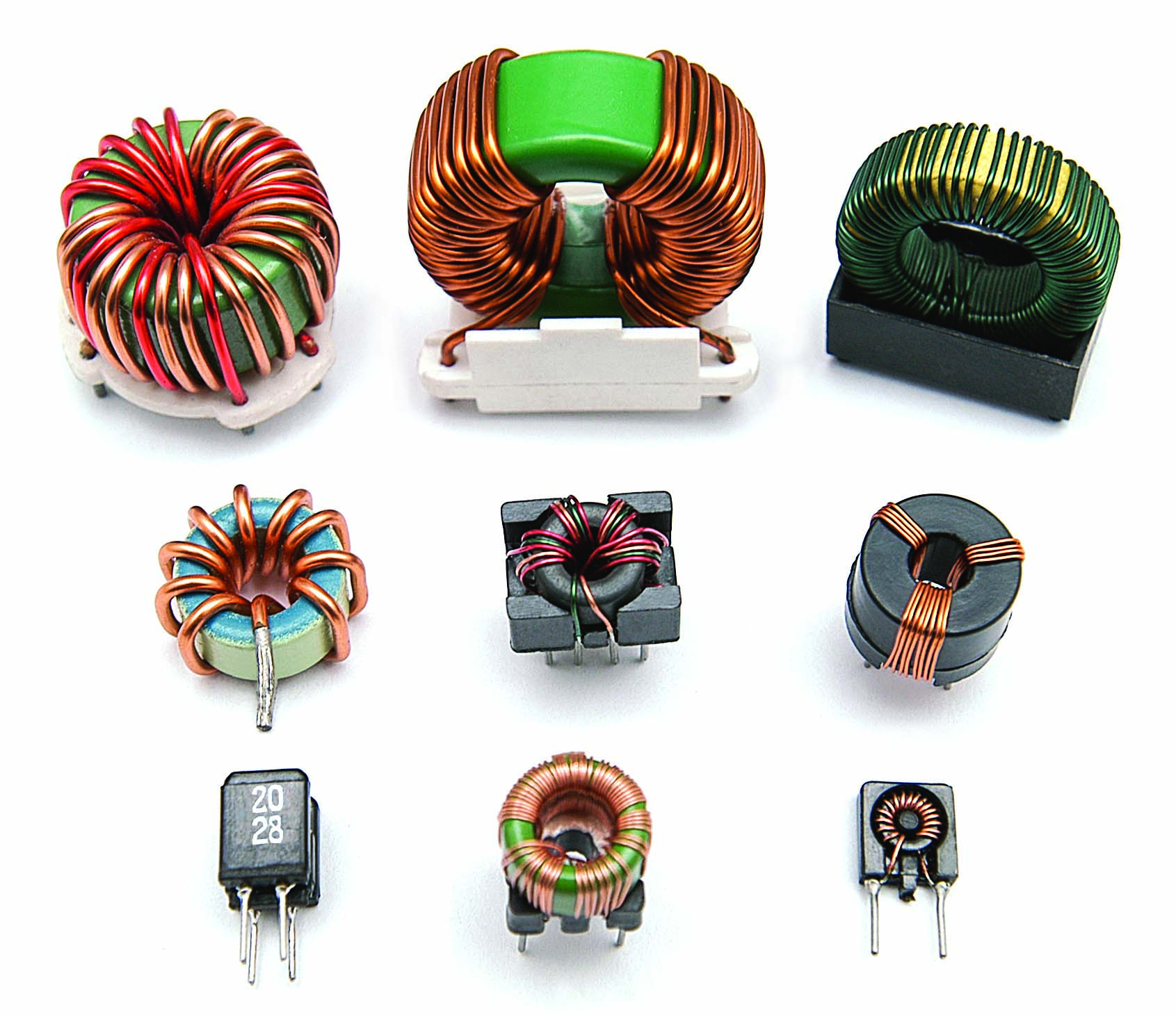

Solar Power System Common Mode Inductor Toroidal Ferrite Core Inductor ISO9001

Name: Solar Power System Common Mode Inductor Toroidal Ferrite Core Inductor ISO9001
Brand: Shinhom
Price: 1 USD

Quality Solar Power System Common Mode Inductor Toroidal Ferrite Core Inductor ISO9001 for sale

Brand Name : Shinhom

Model Number : TRF

Certification : RoHS

Place of Origin : China

MOQ : 5000PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Nature of Operation : Choke Coil

Winding : Common mode

Core : Toroidal ferrite core

Current : Up to 20A

Test frequency : 10KHz

Specification : RoHS, ISO9001

Contact Now

Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification

Features:
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Application:
Low Frequency AC Reactor, Solar Power System, Power Conditioning System,Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.

Technical information:
1. Max operating voltage:250V at 40℃
2. Hi-Pot 2500Vac winding to winding 3S.
3. Operating temperature: -40℃ to +105℃
4. Storage Temperature: -40℃ to +105℃

Product specifications can be customized

Solar Power System Common Mode Inductor Toroidal Ferrite Core Inductor ISO9001
